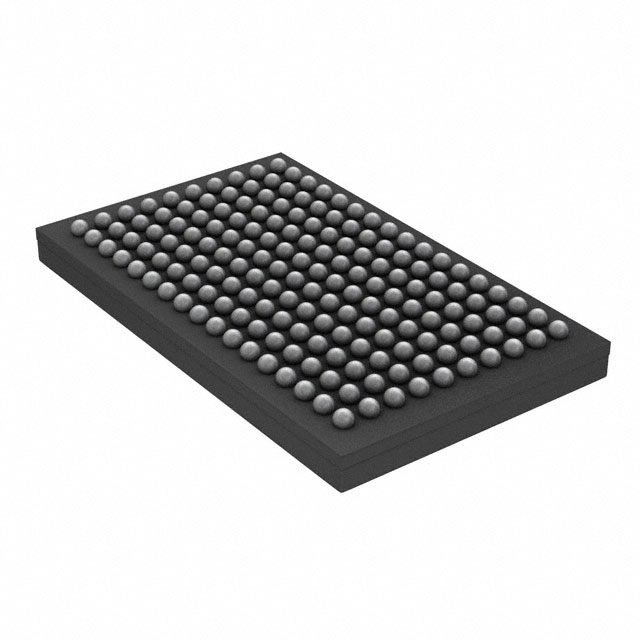

LTC2000IY-16
IC DAC 16BIT A-OUT 170BGAManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LTC2000IY-16 is a 16-bit, single-channel current-steering digital-to-analog converter. It features a parallel LVDS data interface and a differential output, supporting unbuffered current output. The device offers excellent linearity with ±1 LSB INL and ±0.5 LSB DNL. With an external or internal reference, it achieves a typical settling time of 2.2ns. The LTC2000IY-16 operates over an industrial temperature range of -40°C to 85°C and is available in a 170-BGA (15x9) package. Power supply options include analog and digital voltages from 1.8V to 1.92V and 3.135V to 3.465V. This component is suitable for applications in high-speed signal generation, test and measurement equipment, and advanced communications systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 170-LFBGA |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | LVDS - Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.8V ~ 1.92V, 3.135V ~ 3.465V |
| Voltage - Supply, Digital | 1.8V ~ 1.92V, 3.135V ~ 3.465V |
| Settling Time | 2.2ns (Typ) |
| Supplier Device Package | 170-BGA (15x9) |
| Architecture | Current Steering |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±1, ±0.5 |
| Differential Output | Yes |
| Programmable | Not Verified |
