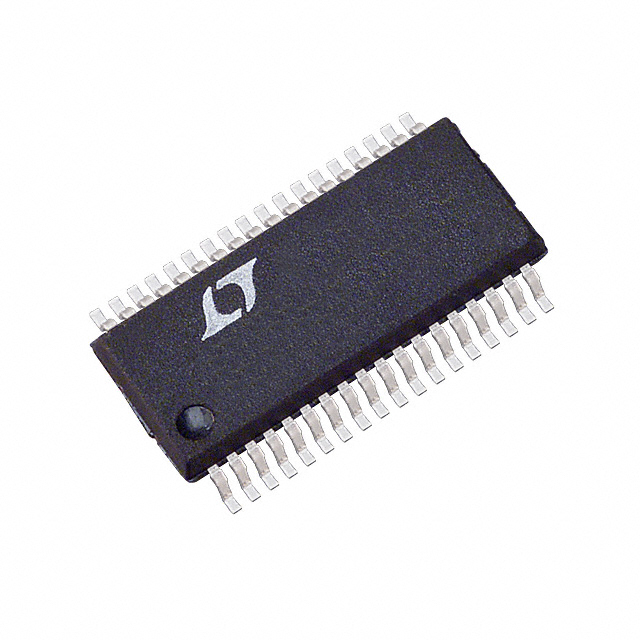

LTC1821BIGW#TRPBF
IC DAC 16BIT V-OUT 36SSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LTC1821BIGW-TRPBF is a 16-bit, single-channel voltage-output digital-to-analog converter (DAC) designed for precision applications. Utilizing an R-2R architecture, this component features a parallel data interface for efficient data transfer. The DAC boasts a maximum integral nonlinearity (INL) and differential nonlinearity (DNL) of ±2 LSB and ±1 LSB, respectively. Its voltage output is buffered, and it supports external voltage references. The LTC1821BIGW-TRPBF operates within an analog supply range of ±4.5V to ±16.5V and a digital supply of 5V, with an operating temperature range of -40°C to 85°C. The settling time is typically 2µs. Supplied in a 36-SSOP package on tape and reel, this device is suitable for surface mount applications. Industries such as industrial automation, test and measurement, and medical equipment can leverage its performance characteristics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-BSOP (0.295"", 7.50mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±4.5V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 2µs (Typ) |
| Supplier Device Package | 36-SSOP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
