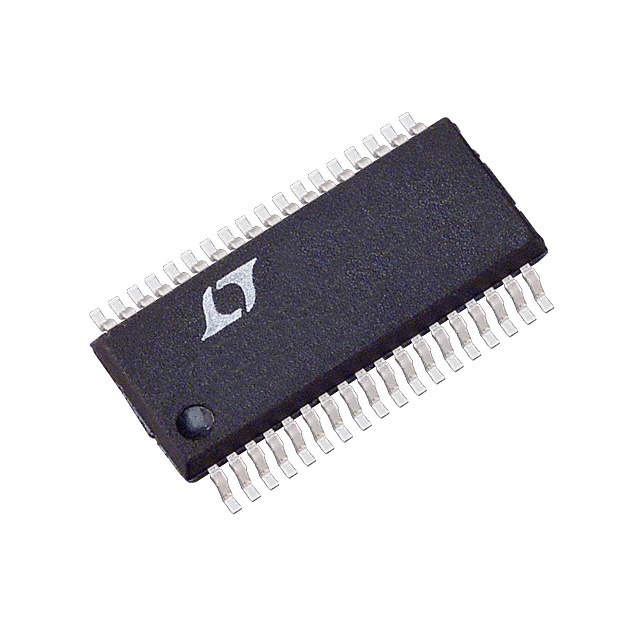

LTC1821-1BCGW#TRPBF
IC DAC 16BIT V-OUT 36SSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LTC1821-1BCGW-TRPBF is a 16-bit, single-channel voltage-output digital-to-analog converter. This R-2R architecture device features a parallel data interface and requires an external voltage reference. It offers a maximum Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±2 LSB and ±1 LSB, respectively. The output is voltage-buffered, and the settling time is typically 2µs. Operating with analog supply voltages ranging from ±4.5V to ±16.5V and a digital supply of 5V, this component is suitable for surface mounting within a 36-SSOP package. This DAC finds application in industrial control systems, medical instrumentation, and high-precision test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-BSOP (0.295"", 7.50mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±4.5V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 2µs (Typ) |
| Supplier Device Package | 36-SSOP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
