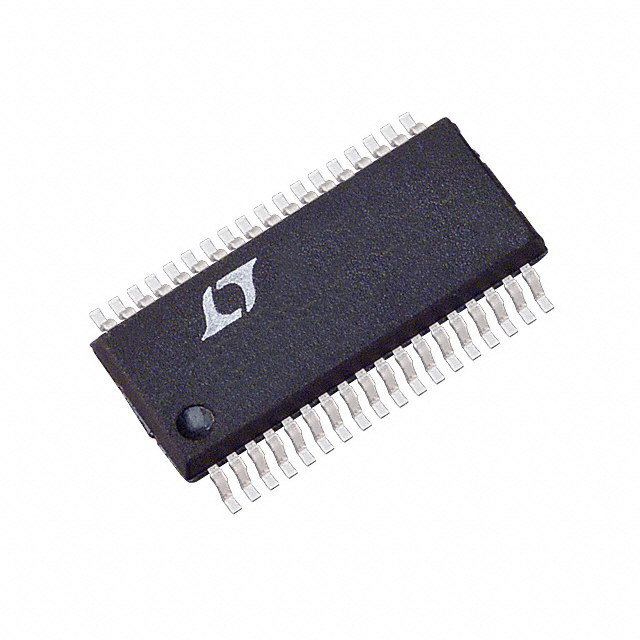

LTC1821-1AIGW#TRPBF
IC DAC 16BIT V-OUT 36SSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LTC1821-1AIGW-TRPBF is a 16-bit, single-channel voltage-output digital-to-analog converter (DAC). Featuring an R-2R architecture, this component offers a high precision conversion with Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±0.35 LSB and ±0.2 LSB, respectively. The device supports an analog supply range of ±4.5V to ±16.5V and a digital supply of 5V. A typical settling time of 2µs enables rapid response in demanding applications. The output is voltage-buffered, and an external reference is required. This surface-mount component is supplied in a 36-SSOP package on tape and reel. The LTC1821-1AIGW-TRPBF is suitable for use in precision instrumentation, industrial control systems, and medical electronics. It operates within a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-BSOP (0.295"", 7.50mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±4.5V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 2µs (Typ) |
| Supplier Device Package | 36-SSOP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.35, ±0.2 |
| Differential Output | No |
| Programmable | Not Verified |
