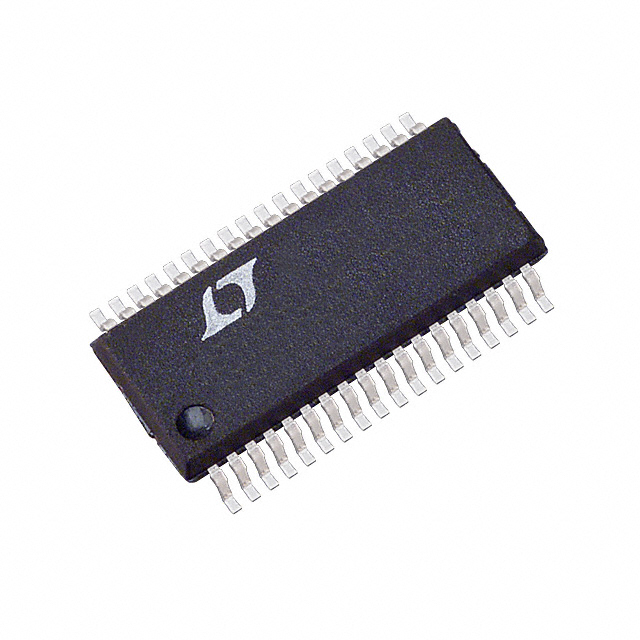

LTC1821-1AIGW#PBF
IC DAC 16BIT V-OUT 36SSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. LTC1871-1AIGW-PBF is a 16-bit, single-channel voltage-output digital-to-analog converter. Featuring an R-2R architecture, this component utilizes a parallel data interface. It offers excellent linearity with INL/DNL specifications of ±0.35 LSB and ±0.2 LSB respectively. The device operates with analog supply voltages ranging from ±4.5V to ±16.5V and a digital supply of 5V. The buffered voltage output ensures stable operation. This component is suitable for surface-mount applications and is supplied in a 36-SSOP package. Its typical settling time is 2µs. The LTC1871-1AIGW-PBF is designed for use in applications requiring precise analog signal generation, including instrumentation, data acquisition systems, and industrial control. Operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 36-BSOP (0.295"", 7.50mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±4.5V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 2µs (Typ) |
| Supplier Device Package | 36-SSOP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.35, ±0.2 |
| Differential Output | No |
| Programmable | Not Verified |
