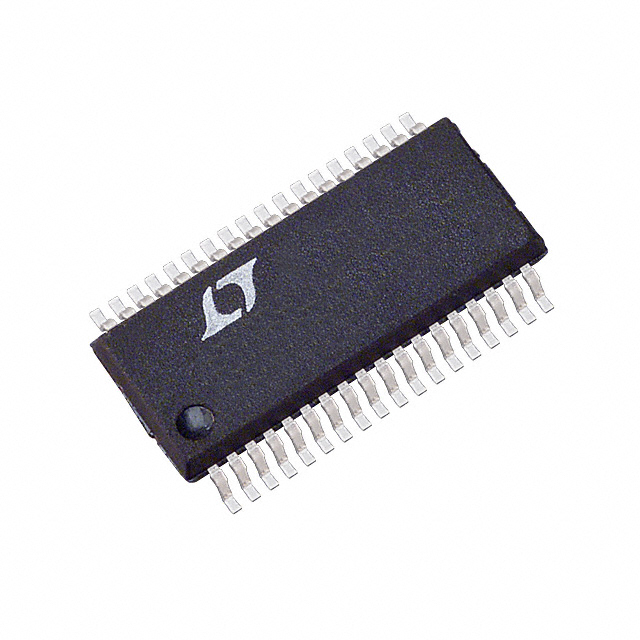

LTC1821-1ACGW#PBF
IC DAC 16BIT V-OUT 36SSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. presents the LTC1821-1ACGW-PBF, a 16-bit, single-channel voltage-output digital-to-analog converter. This component utilizes an R-2R architecture and features a parallel data interface for efficient data transfer. It offers a typical settling time of 2µs and exhibits INL/DNL specifications of ±0.35 LSB and ±0.2 LSB, respectively, ensuring precise conversion. The output is voltage-buffered to minimize loading effects. The LTC1821-1ACGW-PBF supports analog supply voltages ranging from ±4.5V to ±16.5V and a digital supply of 5V. It requires an external reference and is housed in a 36-SSOP package, designed for surface mounting. This device is suitable for applications in instrumentation, industrial control, and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 36-BSOP (0.295"", 7.50mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±4.5V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 2µs (Typ) |
| Supplier Device Package | 36-SSOP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.35, ±0.2 |
| Differential Output | No |
| Programmable | Not Verified |
