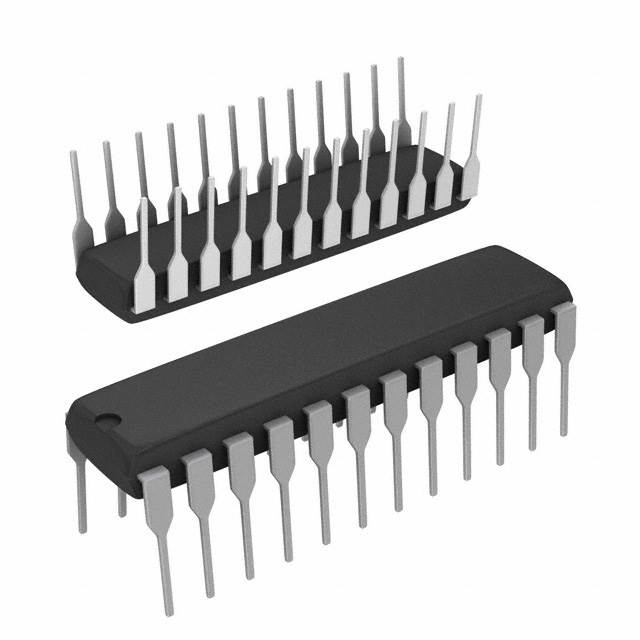

LTC1599BIN#PBF
IC DAC 16BIT A-OUT 24DIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. LTC1599BIN-PBF is a 16-bit, single-channel digital-to-analog converter. Featuring an R-2R architecture, this component offers a parallel data interface and a differential output for enhanced signal integrity. It boasts exceptional linearity with a maximum INL/DNL of ±2 LSB and ±1 LSB respectively. The device operates with analog and digital supply voltages of 5V. Designed for through-hole mounting in a 24-PDIP package, it provides an external reference type and an unbuffered current output. The settling time is typically 1µs, and it operates within an industrial temperature range of -40°C to 85°C. This DAC is suitable for applications in industrial control, data acquisition, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP (0.300"", 7.62mm) |
| Output Type | Current - Unbuffered |
| Mounting Type | Through Hole |
| Number of Bits | 16 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 1µs (Typ) |
| Supplier Device Package | 24-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Differential Output | Yes |
| Programmable | Not Verified |
Request a Quote
