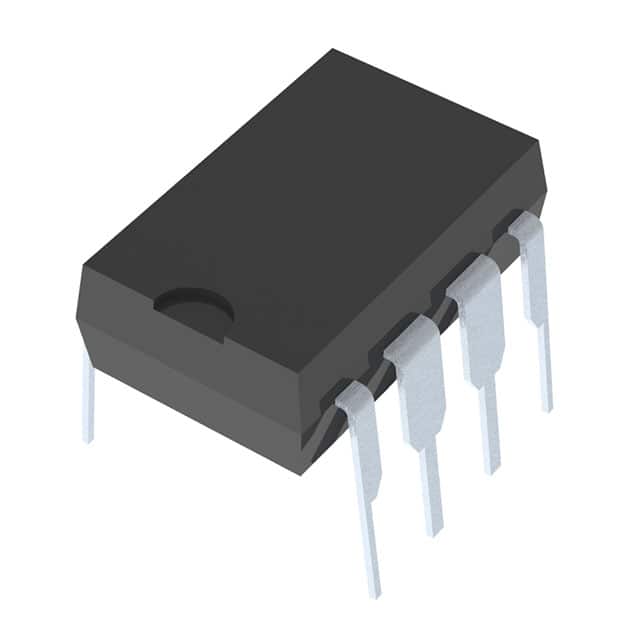

LTC1595CIN8#PBF
IC DAC 16BIT A-OUT 8DIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LTC1595CIN8-PBF is a 16-bit, single-channel digital-to-analog converter (DAC) featuring an R-2R architecture. This component is housed in an 8-pin PDIP package designed for through-hole mounting. The DAC utilizes an external reference and supports a data interface via SPI. Key specifications include an INL/DNL of ±4 LSB maximum, a fast settling time of 1µs typical, and unbuffered current output. It operates across an analog and digital supply voltage range of 5V and is rated for industrial temperature operation from -40°C to 85°C. This device is suitable for applications in industrial control, data acquisition, and precision instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm) |
| Output Type | Current - Unbuffered |
| Mounting Type | Through Hole |
| Number of Bits | 16 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 1µs (Typ) |
| Supplier Device Package | 8-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±4 (Max), ±2 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
