LTC1595BIN8#PBF
IC DAC 16BIT A-OUT 8DIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More

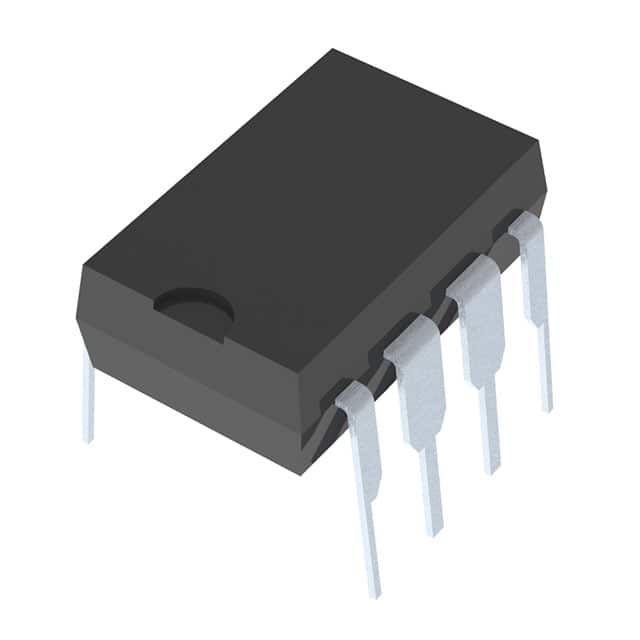

Analog Devices Inc. LTC1595BIN8-PBF is a 16-bit, single-channel Digital-to-Analog Converter (DAC) housed in an 8-pin PDIP package. This R-2R architecture DAC features an SPI data interface for efficient digital control. It provides an unbuffered current output and requires an external reference voltage. The device offers excellent linearity with a maximum Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±2 LSB. Operating with analog and digital supply voltages of 5V, it maintains performance across a temperature range of -40°C to 85°C. The fast settling time of 1µs (typical) makes it suitable for applications in industrial controls and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm) |
| Output Type | Current - Unbuffered |
| Mounting Type | Through Hole |
| Number of Bits | 16 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 1µs (Typ) |
| Supplier Device Package | 8-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
