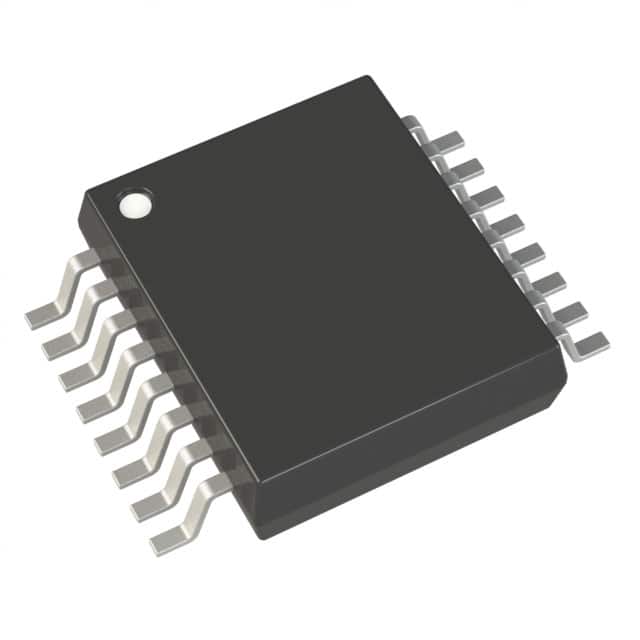

LTC1589IG#TRPBF
IC DAC 14BIT A-OUT 16SSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. LTC1589IG-TRPBF is a 14-bit multiplying digital-to-analog converter (DAC) from the SoftSpan™ series. This single-channel device features a current output, unbuffered and differential, with a 2µs typical settling time. It operates with analog and digital supply voltages of 5V and supports an external reference. The Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) are ±1 LSB maximum. Data is interfaced via SPI. The component is housed in a 16-SSOP package and is supplied on tape and reel. This DAC is suitable for applications in industrial control, data acquisition, and instrumentation.
Additional Information
Series: SoftSpan™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SSOP (0.209"", 5.30mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 2µs (Typ) |
| Supplier Device Package | 16-SSOP |
| Architecture | Multiplying DAC |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | Yes |
| Programmable | Not Verified |
