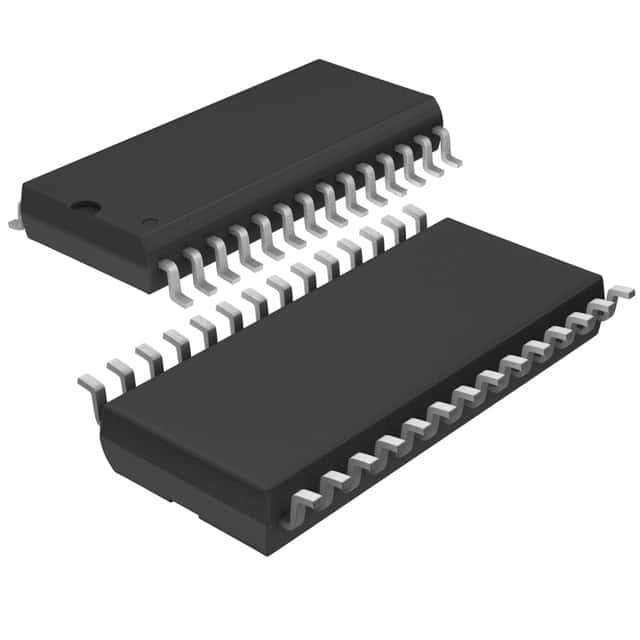

LTC1458LCSW#TRPBF
IC DAC 12BIT V-OUT 28SOICManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LTC1458LCSW-TRPBF is a 12-bit, quad voltage-output digital-to-analog converter (DAC). Featuring an R-2R architecture and an SPI data interface, this component offers a precise 12-bit resolution for analog signal generation. The LTC1458LCSW-TRPBF supports both external and internal reference types, providing flexibility in design. Its buffered voltage output ensures signal integrity, with typical settling times of 14µs. The device operates within a 2.7V to 5.5V analog and digital supply range and is housed in a 28-SOIC package suitable for surface mount applications. This component finds application in industrial control, instrumentation, and general-purpose analog signal processing across various sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 14µs (Typ) |
| Supplier Device Package | 28-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±2.25, ±0.5 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
