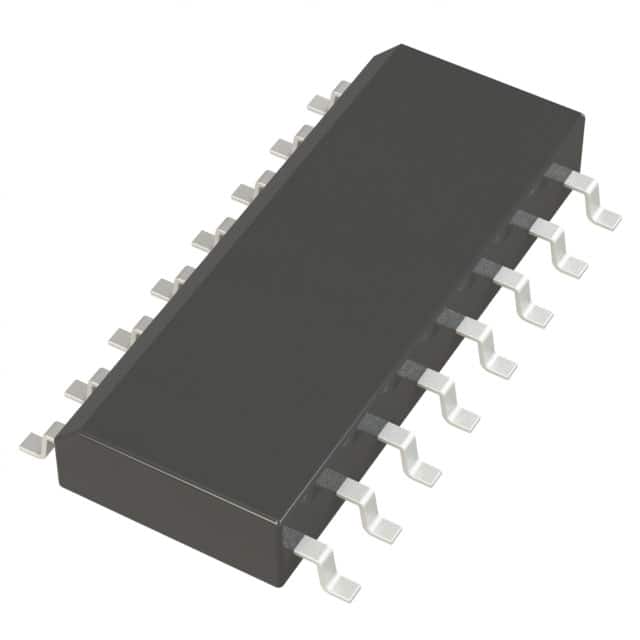

LTC1454LCS#TRPBF
IC DAC 12BIT V-OUT 16SOICManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LTC1454LCS-TRPBF is a dual, 12-bit, voltage-output digital-to-analog converter (DAC) featuring an R-2R architecture. This component utilizes an SPI interface for data transfer and offers buffered voltage outputs. Key specifications include a tight INL/DNL of ±2.5 LSB and ±0.5 LSB respectively, with a typical settling time of 14µs. The device operates from a single analog and digital supply voltage ranging from 2.7V to 5.5V. It supports both external and internal reference types. The LTC1454LCS-TRPBF is supplied in a 16-SOIC package and is delivered on tape and reel. This component is suitable for applications in industrial control, instrumentation, and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 14µs (Typ) |
| Supplier Device Package | 16-SO |
| Architecture | R-2R |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±2.5, ±0.5 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
