LTC1454IS#TRPBF

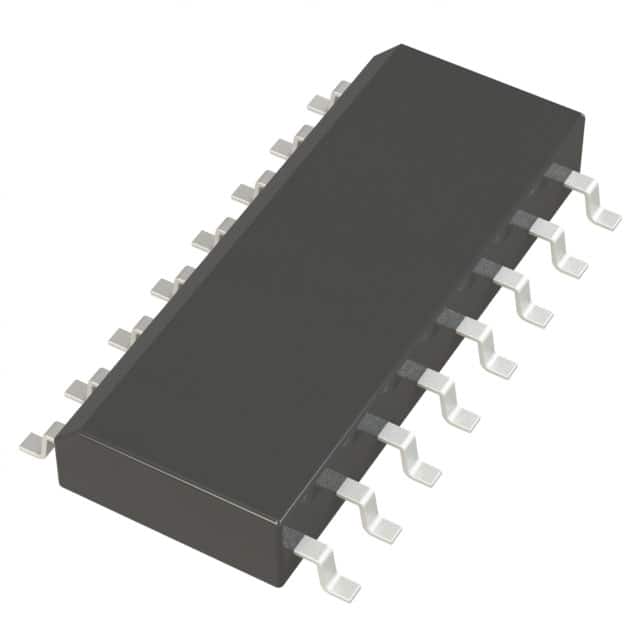

IC DAC 12BIT V-OUT 16SOICManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. LTC1454IS-TRPBF is a 12-bit dual-channel voltage-output digital-to-analog converter (DAC) housed in a 16-SOIC package. This component utilizes an R-2R architecture and features an SPI data interface for efficient communication. It is designed for applications requiring precise analog signal generation, with a maximum Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±2.5 LSB and ±0.5 LSB respectively. The LTC1454IS-TRPBF offers both internal and external voltage reference options and operates from a single 5V supply for both analog and digital domains. Its buffered voltage output ensures stable signal delivery with a typical settling time of 14µs. This device is suitable for use in industrial, medical, and consumer electronics where accurate signal conversion is critical. The component is supplied on tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 14µs (Typ) |
| Supplier Device Package | 16-SO |
| Architecture | R-2R |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±2.5, ±0.5 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
