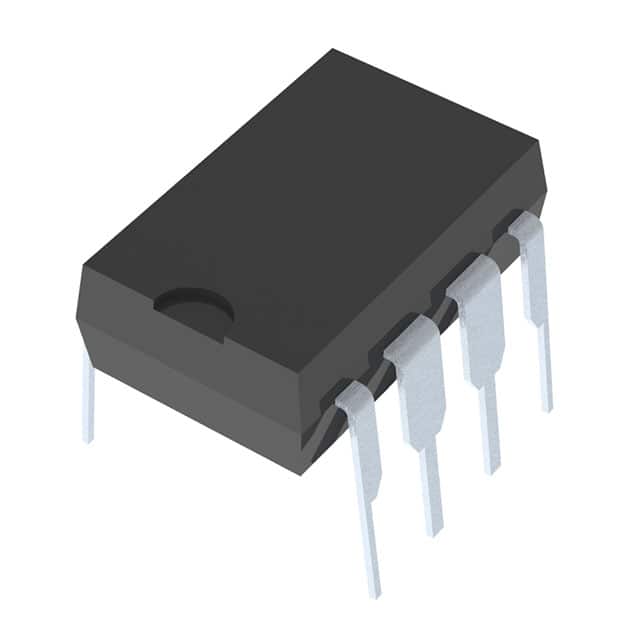

LTC1446LIN8#PBF
IC DAC 12BIT V-OUT 8DIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. presents the LTC1446LIN8-PBF, a dual 12-bit voltage-output digital-to-analog converter designed for applications requiring precise analog signal generation. This component features a String DAC architecture with an SPI serial interface for efficient data transfer. The LTC1446LIN8-PBF offers a buffered voltage output and an internal reference, simplifying system design. Key electrical specifications include a ±2.5 LSB integral nonlinearity (INL) and ±0.2 LSB differential nonlinearity (DNL). The device operates within an analog and digital supply voltage range of 2.7V to 5.5V and boasts a typical settling time of 14µs. Packaged in an 8-PDIP through-hole configuration, it is suitable for operation across a temperature range of -40°C to 85°C. This component finds application in areas such as industrial automation, data acquisition, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 14µs (Typ) |
| Supplier Device Package | 8-PDIP |
| Architecture | String DAC |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±2.5, ±0.2 |
| Differential Output | No |
| Programmable | Not Verified |
