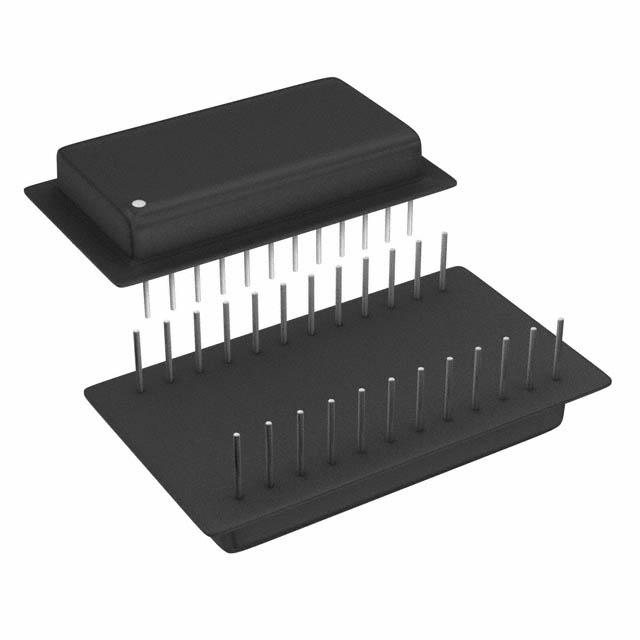

HDS-1250ATM
IC DAC 12BIT A-OUT 24DIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. HDS-1250ATM is a 12-bit, single-channel digital-to-analog converter (DAC) with a parallel data interface. This component utilizes a String DAC architecture and provides an unbuffered current output. The HDS-1250ATM features an internal reference and boasts a typical settling time of 35µs. It is housed in a 24-DIP metal package, designed for through-hole mounting. Operating across an extended temperature range of -55°C to 125°C, this DAC is suitable for demanding applications in aerospace and defense, industrial automation, and high-precision instrumentation. The analog supply voltage range is ±14.5V to ±15.5V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP (0.600"", 15.24mm) Metal |
| Output Type | Current - Unbuffered |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply, Analog | ±14.5V ~ 15.5V |
| Voltage - Supply, Digital | - |
| Settling Time | 35µs |
| Supplier Device Package | 24-DIP |
| Architecture | String DAC |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5, - |
| Differential Output | No |
| Programmable | Not Verified |
