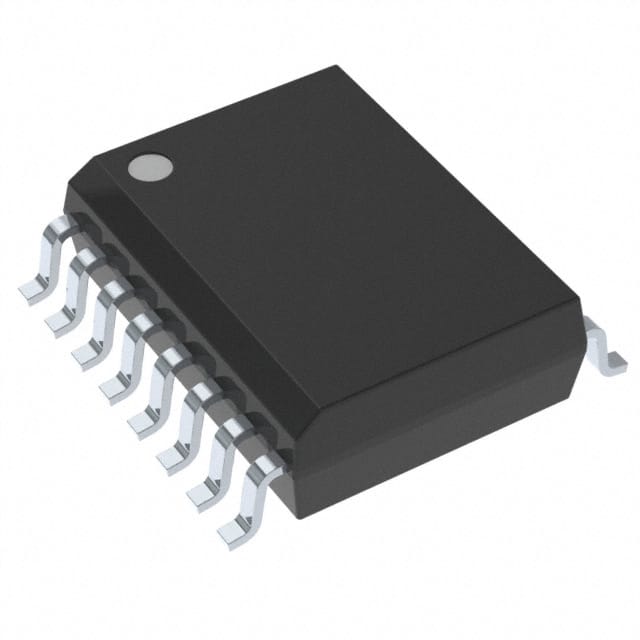

DAC8420FSZ-REEL
IC DAC 12BIT V-OUT 16SOICManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. DAC8420FSZ-REEL is a 12-bit, quad-channel voltage-output digital-to-analog converter (DAC). This R-2R architecture device features an SPI data interface and a buffered voltage output. It offers excellent linearity with typical INL/DNL specifications of ±1 LSB and ±0.25 LSB respectively. The DAC8420FSZ-REEL supports dual analog power supplies ranging from ±5V to ±15V and a digital supply of 5V. With a settling time of 13µs, it is suitable for applications requiring precise and fast analog signal generation. The component is housed in a 16-SOIC (0.295", 7.50mm Width) package, mounted via surface mount technology, and supplied in tape and reel. This device finds application in industrial automation, test and measurement, and audio signal processing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V ~ 15V, -15V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 13µs (Typ) |
| Supplier Device Package | 16-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±1, ±0.25 |
| Differential Output | No |
| Programmable | Not Verified |
