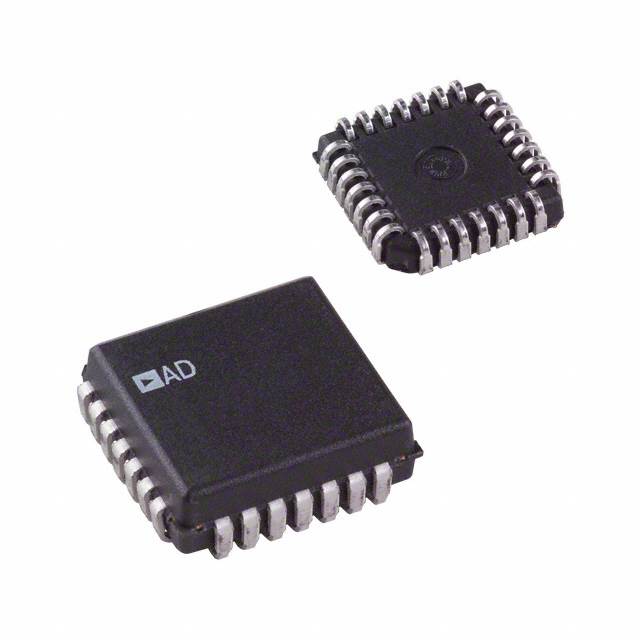

DAC8412FPCZ-REEL
IC DAC 12BIT V-OUT 28PLCCManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
12 Bit Digital to Analog Converter 4 28-PLCC (11.51x11.51)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-LCC (J-Lead) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V ~ 15V, -15V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 10µs (Typ) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Architecture | R-2R |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±1 (Max), -1 |
| Differential Output | No |
| Programmable | Not Verified |
Request a Quote
