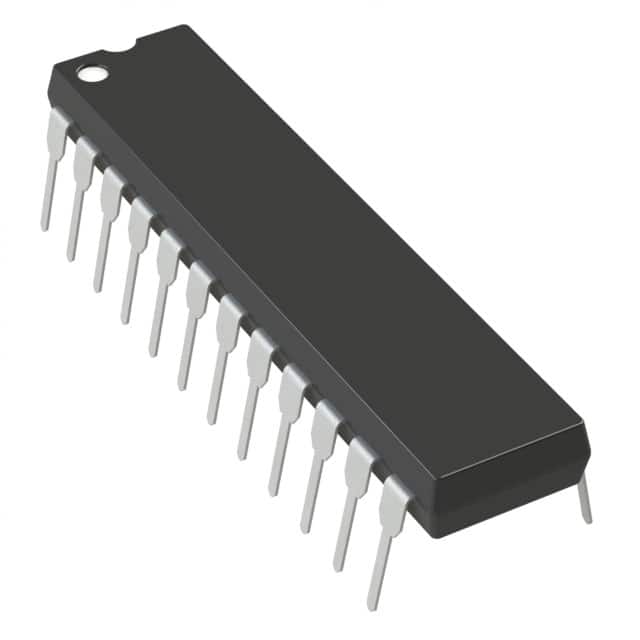

DAC8221GP
IC DAC 12BIT A-OUT 24DIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. DAC8221GP is a dual-channel, 12-bit digital-to-analog converter. Featuring an R-2R architecture, this component offers a parallel data interface and a current output type. The device utilizes an external reference and boasts a typical settling time of 1µs. Specifications include Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±0.2 LSB. Operating with analog and digital supply voltages ranging from 5V to 15V, the DAC8221GP is housed in a 24-PDIP through-hole package. This component finds application in industrial control, data acquisition, and test and measurement equipment. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP (0.300"", 7.62mm) |
| Output Type | Current - Unbuffered |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V |
| Settling Time | 1µs |
| Supplier Device Package | 24-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±0.2, ±0.2 |
| Differential Output | No |
| Programmable | Not Verified |
