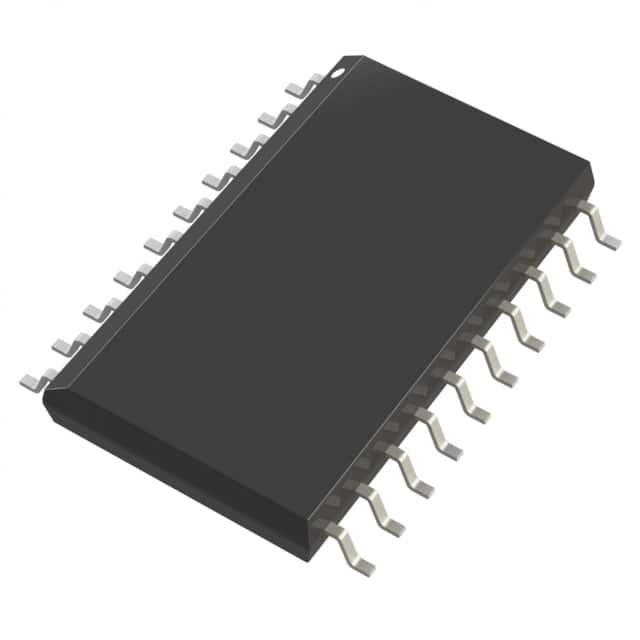

DAC312HS-REEL
IC DAC 12BIT A-OUT 20SOICManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. DAC312HS-REEL is a 12-bit, single-channel digital-to-analog converter (DAC) featuring an R-2R architecture. This component utilizes a parallel data interface and offers a differential current output. The DAC312HS-REEL is housed in a 20-SOIC package and supports surface mount installation. It requires an external reference voltage and boasts a maximum INL/DNL of ±1 LSB. Operating across a temperature range of -40°C to 85°C, it is suitable for analog supply voltages from 4.5V to 18V and -10.8V to 18V, with digital supply requirements between 20V and 36V. The settling time for this device is 500ns. This component finds application in industries such as test and measurement, medical equipment, and industrial automation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 4.5V ~ 18V, -10.8V ~ 18V |
| Voltage - Supply, Digital | 20V ~ 36V |
| Settling Time | 500ns |
| Supplier Device Package | 20-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | -, ±1 (Max) |
| Differential Output | Yes |
| Programmable | Not Verified |
