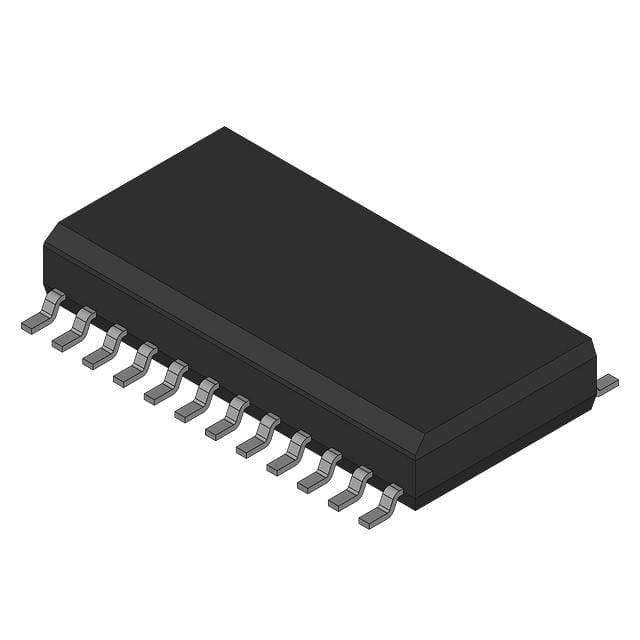

DAC16ES
IC DAC 16BIT A-OUT 24SOICManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
16 Bit Digital to Analog Converter 1 24-SOIC
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | -13V ~ -17V, 4.5V ~ 5.5V |
| Voltage - Supply, Digital | -13V ~ -17V, 4.5V ~ 5.5V |
| Settling Time | 500ns |
| Supplier Device Package | 24-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±3, ±1 |
| Differential Output | No |
| Programmable | Not Verified |
