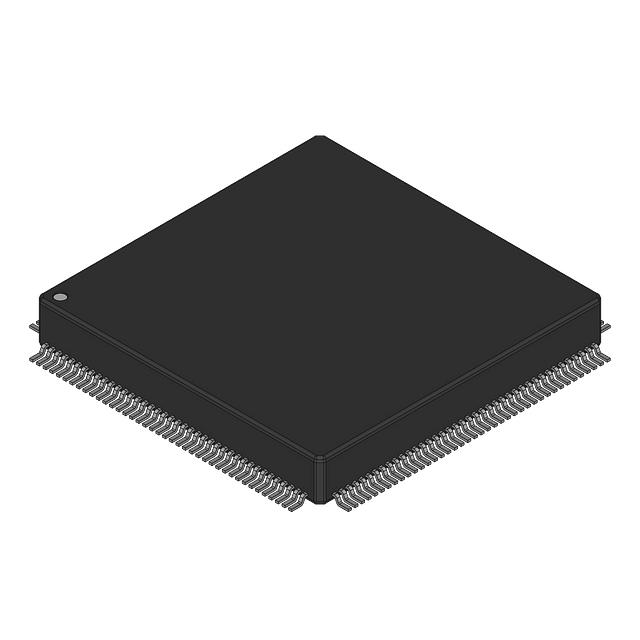

ADV7162KSZ220
IC DAC 10BIT V-OUT 160MQFPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
10 Bit Digital to Analog Converter 3 160-MQFP (28x28)
Additional Information
Series: ADV7162RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 160-BQFP |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Data Interface | Serial |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 1.14V ~ 1.26V |
| Voltage - Supply, Digital | 1.14V ~ 1.26V |
| Settling Time | - |
| Supplier Device Package | 160-MQFP (28x28) |
| Architecture | Current Source |
| Number of D/A Converters | 3 |
| INL/DNL (LSB) | ±1, ±1 |
| Differential Output | No |
| Programmable | Not Verified |
