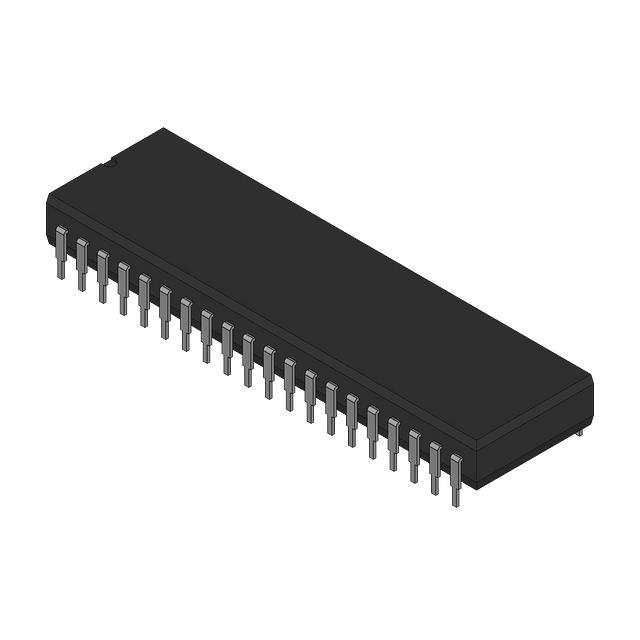

ADV7120KN30
IC DAC 8BIT A-OUT 40DIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
8 Bit Digital to Analog Converter 3 40-PDIP
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 40-DIP (0.600"", 15.24mm) |
| Output Type | Current - Unbuffered |
| Mounting Type | Through Hole |
| Number of Bits | 8 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Settling Time | - |
| Supplier Device Package | 40-PDIP |
| Architecture | Current Source |
| Number of D/A Converters | 3 |
| INL/DNL (LSB) | ±1 (Max), ±0.5 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
Request a Quote
