ADFS5758BCPZ-RL7
IC DAC 16B V OR A-OUT 32LFCSPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
16 Bit Digital to Analog Converter 1 32-LFCSP (5x5)
Additional Information
Series: ADFS5758RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

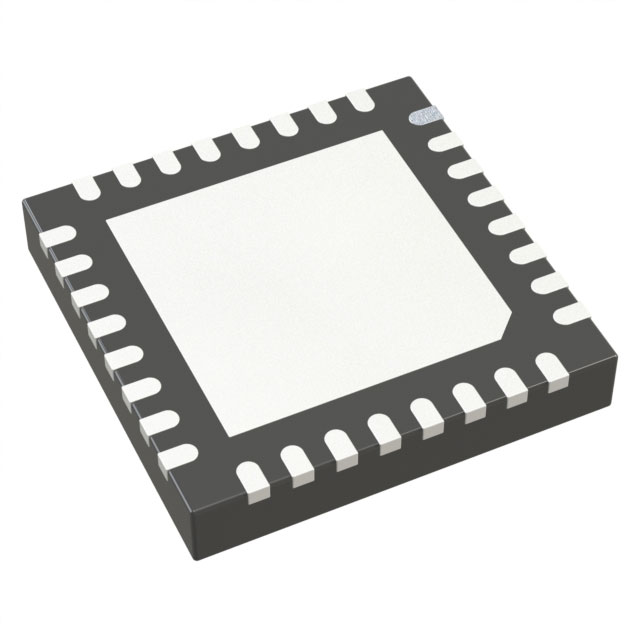

| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Output Type | Voltage or Current - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 7V ~ 33V |
| Voltage - Supply, Digital | 1.71V ~ 5.5V |
| Settling Time | 15µs (Typ), 20µs |
| Supplier Device Package | 32-LFCSP (5x5) |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | -, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
Request a Quote
