ADDAC80N-CBI-V

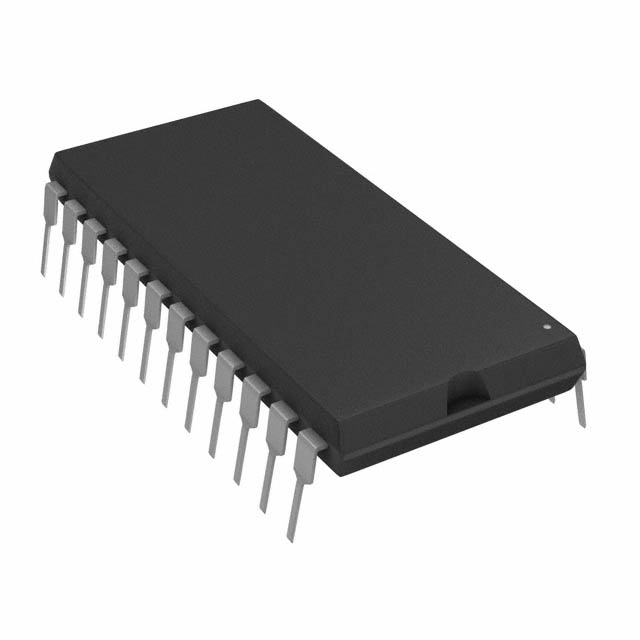

IC DAC 12BIT V-OUT 24DIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. ADDAC80N-CBI-V is a 12-bit, single-channel Digital to Analog Converter (DAC) featuring a voltage output. This component utilizes an R-2R architecture and offers a parallel data interface. The ADDAC80N-CBI-V provides a buffered voltage output and supports both external and internal voltage references. Key performance specifications include a maximum Integral Non-Linearity (INL) of ±0.25 LSB and a maximum Differential Non-Linearity (DNL) of ±0.75 LSB, with a settling time of 4µs. It operates within an analog supply voltage range of ±11.4V to ±16.5V and a digital supply voltage range of 4.5V to 16V. The component is housed in a 24-pin DIP (0.600", 15.24mm) package, suitable for through-hole mounting. This DAC is commonly found in industrial automation, test and measurement, and audio processing applications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP (0.600"", 15.24mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 4.5V ~ 16V |
| Settling Time | 4µs |
| Supplier Device Package | 24-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.25, ±0.75 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
