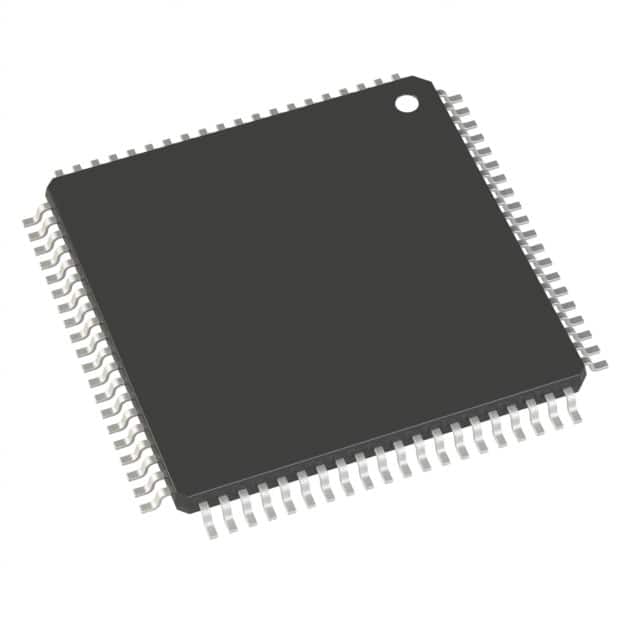

ADAU1966WBSTZRL
IC DAC 24BIT V-OUT 80LQFPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. ADAU1966WBSTZRL is a 16-channel, 24-bit digital-to-analog converter. This Sigma-Delta architecture DAC features a voltage output and supports both I2C and SPI data interfaces. The device offers differential outputs and an internal reference. Packaged in an 80-LQFP (14x14) surface-mount format, it is supplied on tape and reel. Operating within a temperature range of -40°C to 105°C, the ADAU1966WBSTZRL is suitable for automotive applications. Analog supply voltage is 5V, with digital supply ranging from 2.25V to 3.6V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 80-LQFP |
| Output Type | Voltage - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Data Interface | I2C, SPI |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.25V ~ 3.6V |
| Settling Time | - |
| Supplier Device Package | 80-LQFP (14x14) |
| Architecture | Sigma-Delta |
| Number of D/A Converters | 16 |
| INL/DNL (LSB) | - |
| Differential Output | Yes |
| Grade | Automotive |
| Programmable | Not Verified |
