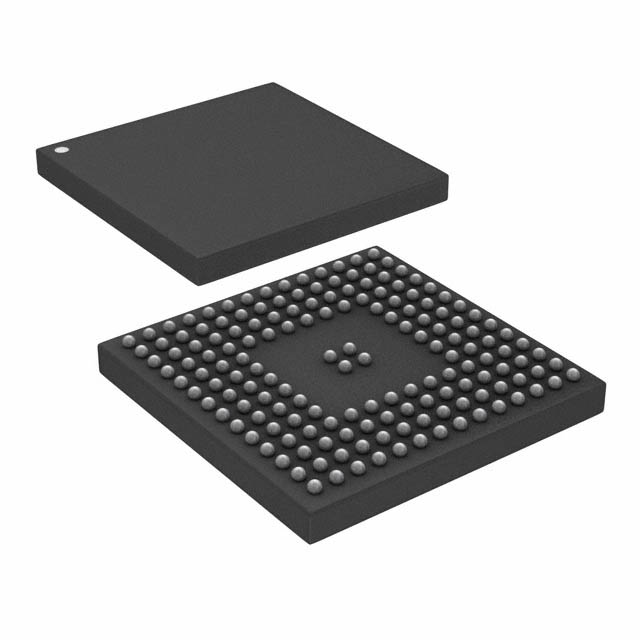

AD9789BBCRL
IC DAC 14BIT A-OUT 164CSPBGAManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
14 Bit Digital to Analog Converter 1 164-CSPBGA (12x12)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 164-LFBGA, CSPBGA |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3.14V ~ 3.47V |
| Voltage - Supply, Digital | 1.43V ~ 1.58V, 1.71V ~ 1.89V, 3.14V ~ 3.47V |
| Settling Time | 13ns (Typ) |
| Supplier Device Package | 164-CSPBGA (12x12) |
| Architecture | Oversampling Interpolating DAC |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | - |
| Differential Output | Yes |
| Programmable | Not Verified |
