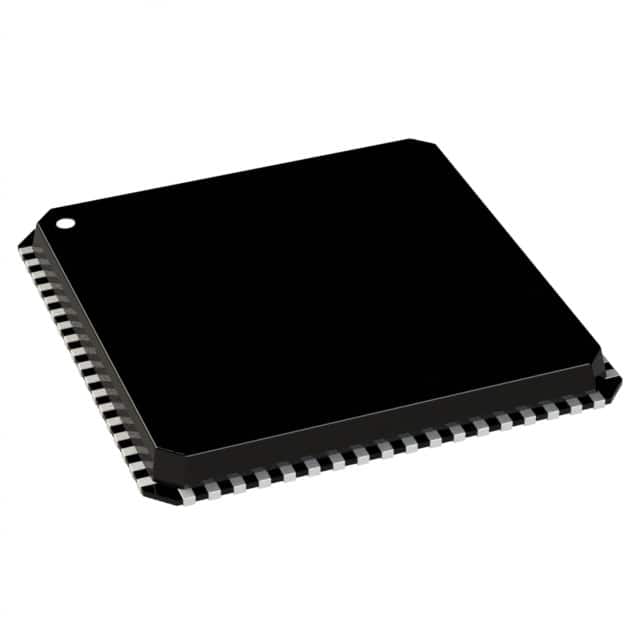

AD9783BCPZRL
IC DAC 16BIT A-OUT 72LFCSPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
16 Bit Digital to Analog Converter 2 72-LFCSP-VQ (10x10)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 72-VFQFN Exposed Pad, CSP |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | LVDS - Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3.13V ~ 3.47V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V, 3.13V ~ 3.47V |
| Settling Time | - |
| Supplier Device Package | 72-LFCSP-VQ (10x10) |
| Architecture | Quad-Switch |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±4, ±2 |
| Differential Output | Yes |
| Programmable | Not Verified |
