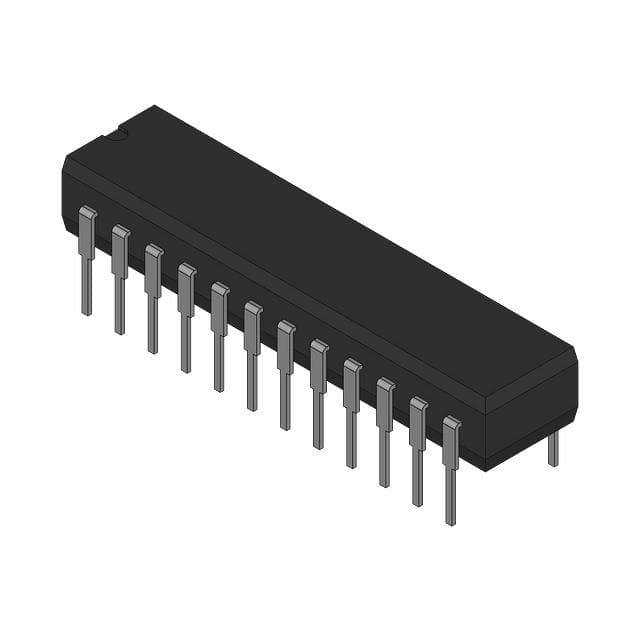

AD9702BW
IC DAC 4BIT A-OUT 24CDIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD9702BW is a 4-bit, triple-channel current-output Digital to Analog Converter (DAC) in a 24-CDIP package. This component is designed for applications requiring precise analog signal generation, supporting a settling time of 5ns. The AD9702 series DACs offer unbuffered current outputs, requiring external reference. The device operates within a temperature range of -25°C to 85°C. This component finds application in various industries including test and measurement, medical imaging, and industrial control systems where high-speed, high-resolution signal conversion is critical.
Additional Information
Series: AD9702RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 24-CDIP (0.600"", 15.24mm) Window |
| Output Type | Current - Unbuffered |
| Mounting Type | Through Hole |
| Number of Bits | 4 |
| Data Interface | - |
| Reference Type | External |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply, Analog | - |
| Voltage - Supply, Digital | - |
| Settling Time | 5ns |
| Supplier Device Package | 24-CDIP |
| Architecture | - |
| Number of D/A Converters | 3 |
| INL/DNL (LSB) | - |
| Differential Output | No |
| Programmable | Not Verified |
