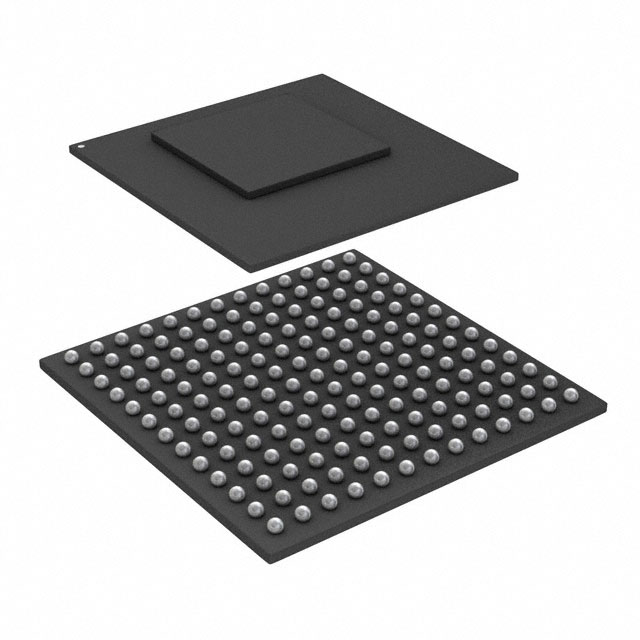

AD9161BBCZRL
IC DAC 11BIT A-OUT 169CSPBGAManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
11 Bit Digital to Analog Converter 1 169-CSPBGA (11x11)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 169-VFBGA, CSPBGA |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 11 |
| Data Interface | JESD204B |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.14V ~ 1.326V, 2.375V ~ 2.625V |
| Voltage - Supply, Digital | 1.14V ~ 1.326V |
| Settling Time | - |
| Supplier Device Package | 169-CSPBGA (11x11) |
| Architecture | Quad-Switch |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±2.7, ±1.7 |
| Differential Output | No |
| Programmable | Not Verified |
