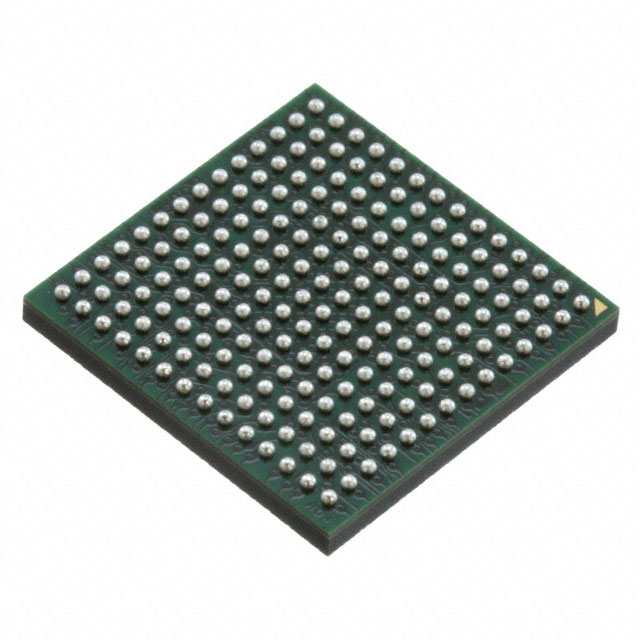

AD9148BBPZ
IC DAC 16BIT A-OUT 196BGAManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
16 Bit Digital to Analog Converter 4 196-BGA-ED (12x12)
Additional Information
Series: TxDAC+®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 196-LFBGA Exposed Pad |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | LVDS - Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3.13V ~ 3.47V |
| Voltage - Supply, Digital | 1.71V ~ 1.89V |
| Settling Time | 20ns (Typ) |
| Supplier Device Package | 196-BGA-ED (12x12) |
| Architecture | Current Source |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±3.7, ±2.1 |
| Differential Output | Yes |
| Programmable | Not Verified |
Request a Quote
