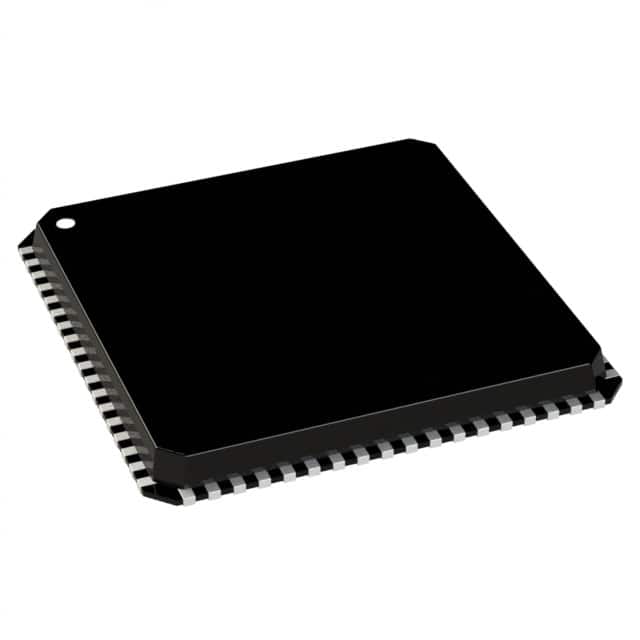

AD9139BCPZRL
IC DAC 16BIT A-OUT 72LFCSPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. AD9139BCPZRL is a 16-bit, single-channel TxDAC+® digital-to-analog converter. This device features a current-source architecture with excellent linearity, exhibiting typical INL/DNL of ±3.7 LSB and ±2.1 LSB respectively. The high-speed data interface utilizes LVDS for parallel input, supporting a 20ns typical settling time. It offers both external and internal reference types and a differential current output. Operating across a temperature range of -40°C to 85°C, the AD9139BCPZRL is housed in a 72-LFCSP-VQ (10x10) surface-mount package and supplied on tape and reel. Analog supply voltage ranges from 3.13V to 3.47V, with digital supply at 1.7V to 1.9V. This component is suitable for applications in telecommunications, test and measurement equipment, and high-speed signal generation.
Additional Information
Series: TxDAC+®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 72-VFQFN Exposed Pad, CSP |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | LVDS - Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3.13V ~ 3.47V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Settling Time | 20ns (Typ) |
| Supplier Device Package | 72-LFCSP-VQ (10x10) |
| Architecture | Current Source |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±3.7, ±2.1 |
| Differential Output | Yes |
| Programmable | Not Verified |
