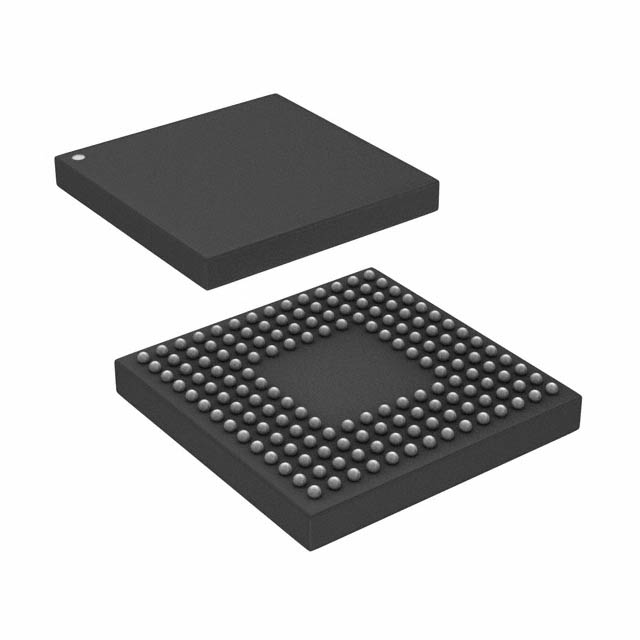

AD9129BBCRL
IC DAC 14BIT A-OUT 160CSPBGAManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD9129BBCRL is a 14-bit, single-channel digital-to-analog converter (DAC) in a 160-CSPBGA (12x12) package. This component features a quad-switch architecture and supports an LVDS parallel data interface with differential outputs. The AD9129BBCRL offers a typical settling time of 13ns and exhibits integral nonlinearity (INL) and differential nonlinearity (DNL) of 1.4 LSB and 1.1 LSB, respectively. It operates with analog and digital supply voltages ranging from 1.7V to 1.9V and includes both external and internal reference types. The output is current-buffered, suitable for applications in high-speed signal generation, communications infrastructure, and test and measurement equipment. This device is supplied on tape and reel for surface mount applications and operates within a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 160-LFBGA, CSPBGA |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | LVDS - Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Settling Time | 13ns (Typ) |
| Supplier Device Package | 160-CSPBGA (12x12) |
| Architecture | Quad-Switch |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | 1.4, 1.1 |
| Differential Output | Yes |
| Programmable | Not Verified |
