AD9129BBC
IC DAC 14BIT A-OUT 160CSPBGAManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More

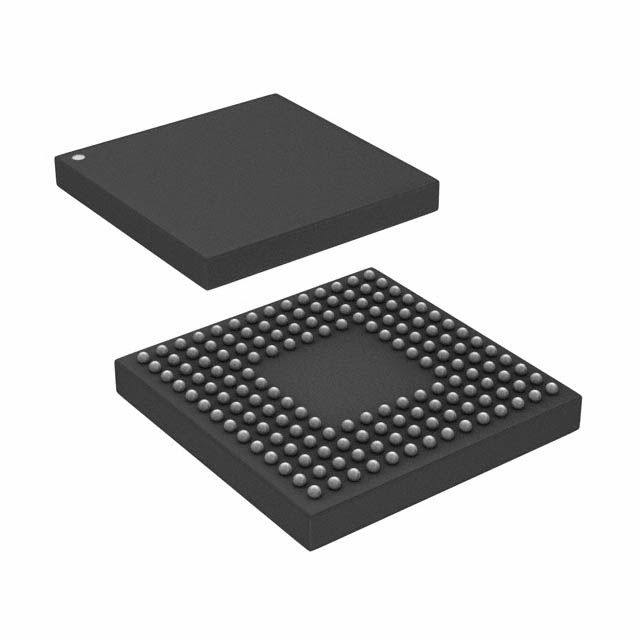

14 Bit Digital to Analog Converter 1 160-CSPBGA (12x12)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 160-LFBGA, CSPBGA |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | LVDS - Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Settling Time | 13ns (Typ) |
| Supplier Device Package | 160-CSPBGA (12x12) |
| Architecture | Quad-Switch |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | 1.4, 1.1 |
| Differential Output | Yes |
| Programmable | Not Verified |
Request a Quote
