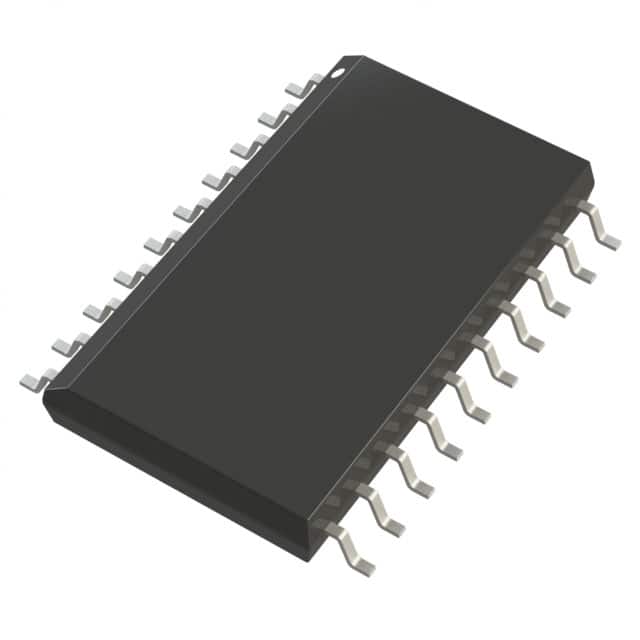

AD7849CRZ
IC DAC 16BIT V-OUT 20SOICManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
16 Bit Digital to Analog Converter 1 20-SOIC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±14.25V ~ 15.75V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 10µs (Typ) |
| Supplier Device Package | 20-SOIC |
| Architecture | String DAC |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±8 (Max), ±0.5 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
Request a Quote
