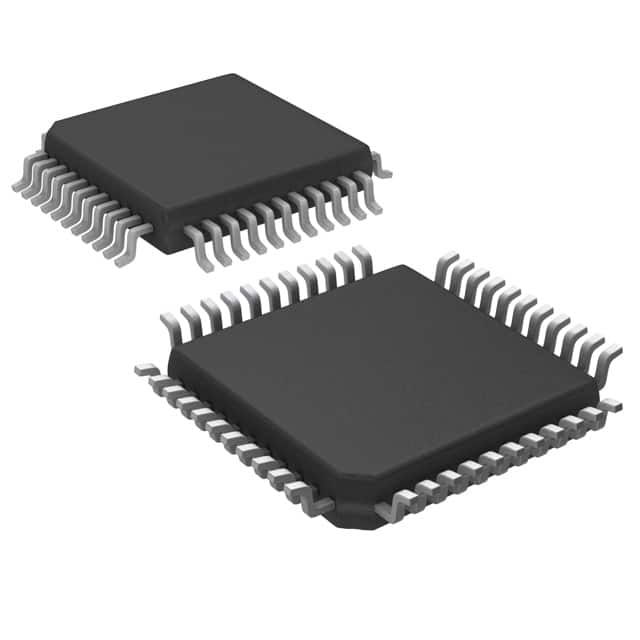

AD7568BSZ
IC DAC 12BIT A-OUT 44MQFPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD7568BSZ is a high-performance 12-bit, 8-channel current-output digital-to-analog converter. Featuring an R-2R architecture, this component offers excellent linearity with typical INL/DNL specifications of ±0.5 LSB and ±0.9 LSB, respectively. The AD7568BSZ utilizes an SPI data interface for efficient communication and supports a differential output. Its 44-MQFP (10x10) package is designed for surface mounting, suitable for demanding applications. The device operates with analog and digital supply voltages of 5V and has a settling time of 550ns. This DAC is commonly employed in test and measurement equipment, industrial automation, and medical instrumentation. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 44-QFP |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 550ns (Typ) |
| Supplier Device Package | 44-MQFP (10x10) |
| Architecture | R-2R |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±0.5 (Max), ±0.9 (Max) |
| Differential Output | Yes |
| Programmable | Not Verified |
