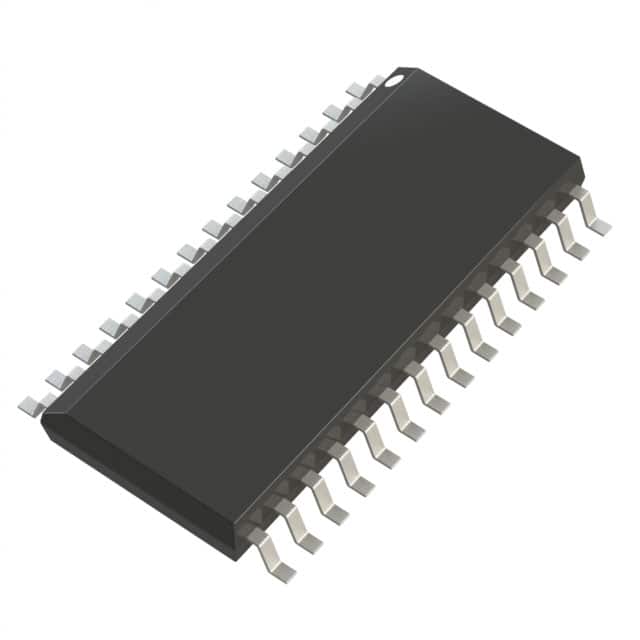

AD7564BRZ
IC DAC 12BIT A-OUT 28SOICManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. AD7564BRZ is a 12-bit, quad voltage-output digital-to-analog converter (DAC) featuring an R-2R architecture. This component supports a 5V analog and digital supply voltage and offers a 550µs typical settling time. The device provides four independent DAC channels, each with a differential output. Data is interfaced via SPI, and the converter accepts an external voltage reference. The AD7564BRZ exhibits excellent linearity performance with ±0.5 LSB maximum INL and DNL. Packaged in a 28-SOIC (0.295", 7.50mm width) surface-mount configuration, this component is suitable for applications in industrial automation, instrumentation, and communications. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 550µs (Typ) |
| Supplier Device Package | 28-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±0.5 (Max), ±0.5 (Max) |
| Differential Output | Yes |
| Programmable | Not Verified |
