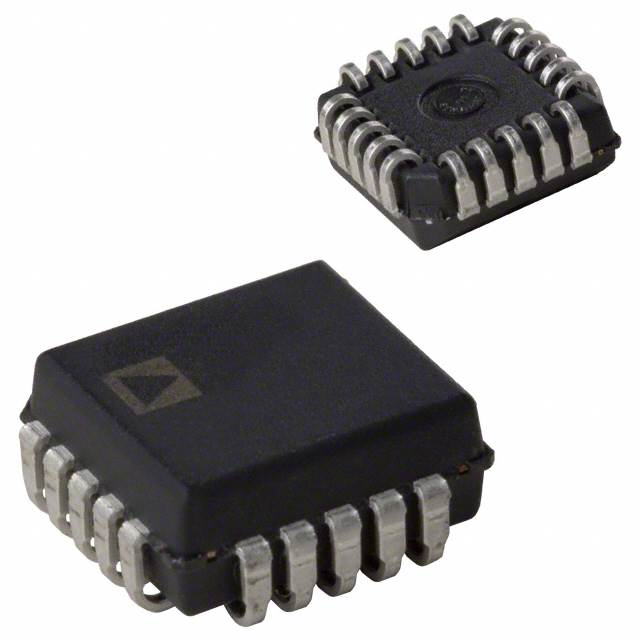

AD7541AKPZ
IC DAC 12BIT A-OUT 20PLCCManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD7541AKPZ is a 12-bit, single-channel current-output digital-to-analog converter (DAC) housed in a 20-PLCC package. This R-2R ladder architecture DAC features a parallel data interface and an unbuffered current output. It is designed for applications requiring high precision and linearity, with typical Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±0.5 LSB maximum. The device operates with analog and digital supply voltages ranging from 5V to 16V and offers a settling time of 600ns. The AD7541AKPZ is suitable for use in instrumentation, industrial control, and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-LCC (J-Lead) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V ~ 16V |
| Voltage - Supply, Digital | 5V ~ 16V |
| Settling Time | 600ns (Typ) |
| Supplier Device Package | 20-PLCC (9x9) |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5 (Max), ±0.5 (Max) |
| Differential Output | Yes |
| Programmable | Not Verified |
