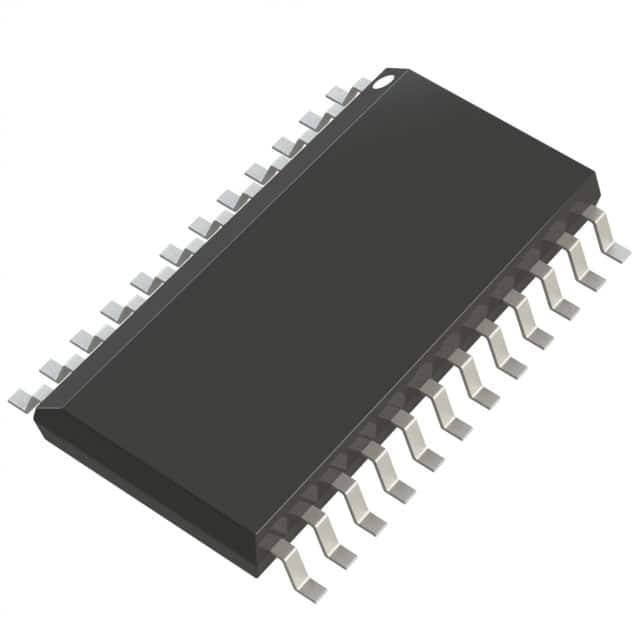

AD7537JR
IC DAC 12BIT A-OUT 24SOICManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD7537JR is a dual, 12-bit, current-output digital-to-analog converter (DAC) housed in a 24-SOIC package. This component features an R-2R architecture and a parallel data interface. The device offers two independent DAC channels, each with an unbuffered current output. The AD7537JR supports external voltage references and exhibits integral and differential linearity (INL/DNL) of ±1 LSB maximum. With a settling time of 1.5µs, it is suitable for applications requiring precise analog signal generation. Operating over an analog and digital supply voltage range of 10.8V to 16.5V, this component is engineered for use in industrial and consumer electronics markets. The package is designed for surface mounting and is supplied in a tube.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 10.8V ~ 16.5V |
| Voltage - Supply, Digital | 10.8V ~ 16.5V |
| Settling Time | 1.5µs |
| Supplier Device Package | 24-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
