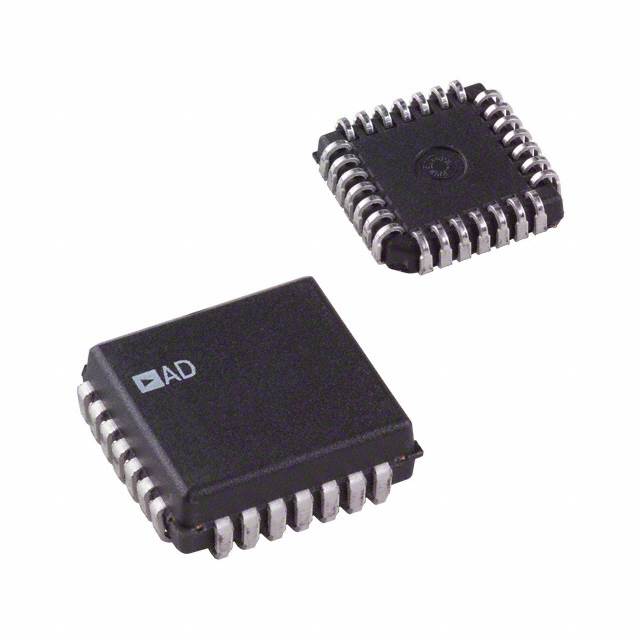

AD7537JP
IC DAC 12BIT A-OUT 28PLCCManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD7537JP is a dual, 12-bit R-2R ladder digital-to-analog converter. This component features a parallel data interface and unbuffered current outputs, with a typical settling time of 1.5µs. It operates with analog and digital supply voltages ranging from 10.8V to 16.5V and offers excellent linearity with INL/DNL of ±1 LSB maximum. The AD7537JP is housed in a 28-PLCC package designed for surface mounting and supports an operating temperature range of -40°C to 85°C. This device is commonly found in industrial automation, test and measurement equipment, and audio processing applications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-LCC (J-Lead) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 10.8V ~ 16.5V |
| Voltage - Supply, Digital | 10.8V ~ 16.5V |
| Settling Time | 1.5µs |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Architecture | R-2R |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
