AD7398BR
IC DAC 12BIT V-OUT 16SOICManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. AD7398BR is a 12-bit, quad voltage-output digital-to-analog converter featuring an R-2R architecture. This component utilizes an SPI serial data interface for efficient data transfer. Designed for surface mounting, it is supplied in a 16-SOIC package. The AD7398BR offers a voltage output that is buffered and configurable with external voltage references. Key specifications include integral and differential linearity (INL/DNL) of ±1.5 LSB and ±1 LSB maximum, respectively, and a typical settling time of 6µs. It operates across a wide analog and digital supply voltage range of 2.7V to 5.5V, as well as ±5V for analog supply. This device is suitable for applications in industrial automation, medical equipment, and test and measurement systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |

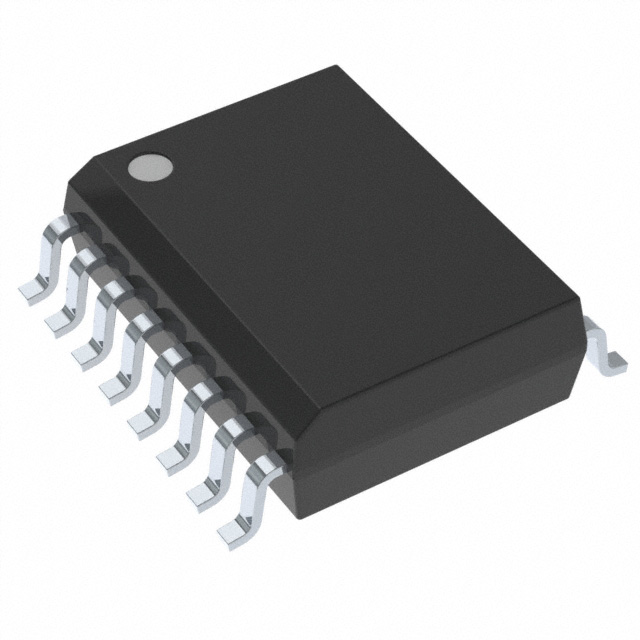

| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V, ±5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 6µs (Typ) |
| Supplier Device Package | 16-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±1.5 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
