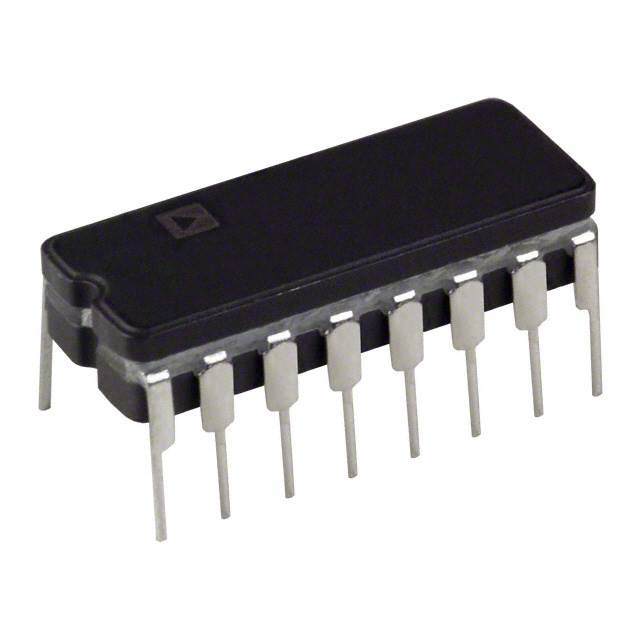

AD7249SQ
IC DAC 12BIT V-OUT 16CDIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
12 Bit Digital to Analog Converter 2 16-CERDIP
Additional Information
Series: DACPORT®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-CDIP (0.300"", 7.62mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply, Analog | ±10.8V ~ 16.5V |
| Voltage - Supply, Digital | - |
| Settling Time | 10µs |
| Supplier Device Package | 16-CERDIP |
| Architecture | R-2R |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±1 (Max), ±0.9 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
Request a Quote
