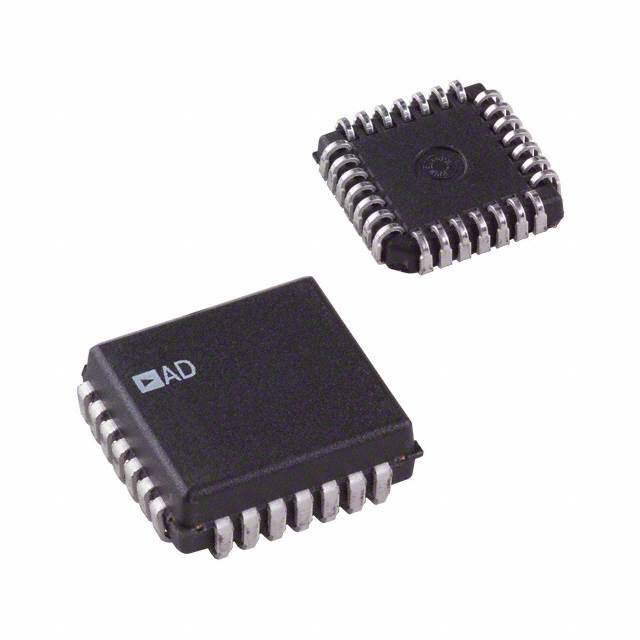

AD7248AAPZ
IC DAC 12BIT V-OUT 28PLCCManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
12 Bit Digital to Analog Converter 1 28-PLCC (11.51x11.51)
Additional Information
Series: DACPORT®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-LCC (J-Lead) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±10.8V ~ 16.5V |
| Voltage - Supply, Digital | 10.8V ~ 16.5V |
| Settling Time | 7µs |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
