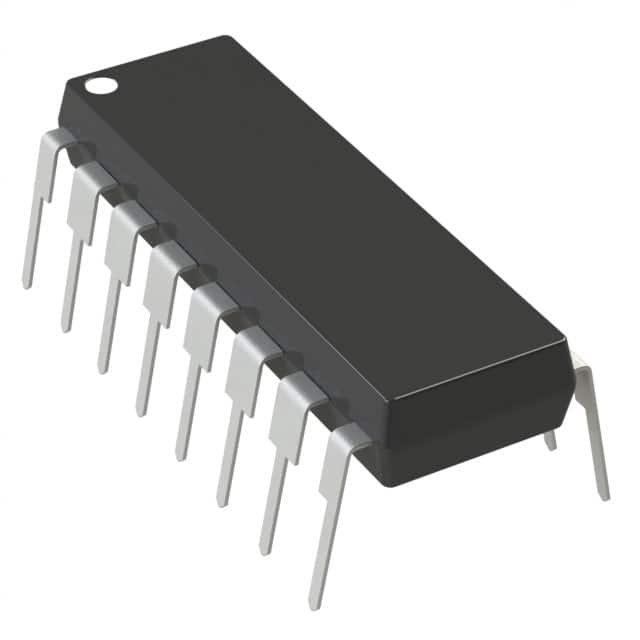

AD7243AN
IC DAC 12BIT V-OUT 16DIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. DACPORT® AD7243AN is a 12-bit, monolithic digital-to-analog converter. This component features an R-2R architecture and provides a voltage output. The AD7243AN supports an SPI data interface for digital control. Key specifications include a maximum INL/DNL of ±1 LSB and a settling time of 10µs. The device operates with analog supply voltages ranging from ±10.8V to ±16.5V. Packaged in a 16-pin PDIP, it is designed for through-hole mounting. The operating temperature range is -40°C to 85°C. This component is suitable for applications in industrial control, data acquisition, and test and measurement systems.
Additional Information
Series: DACPORT®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.300"", 7.62mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±10.8V ~ 16.5V |
| Voltage - Supply, Digital | - |
| Settling Time | 10µs |
| Supplier Device Package | 16-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±1 (Max), ±0.9 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
