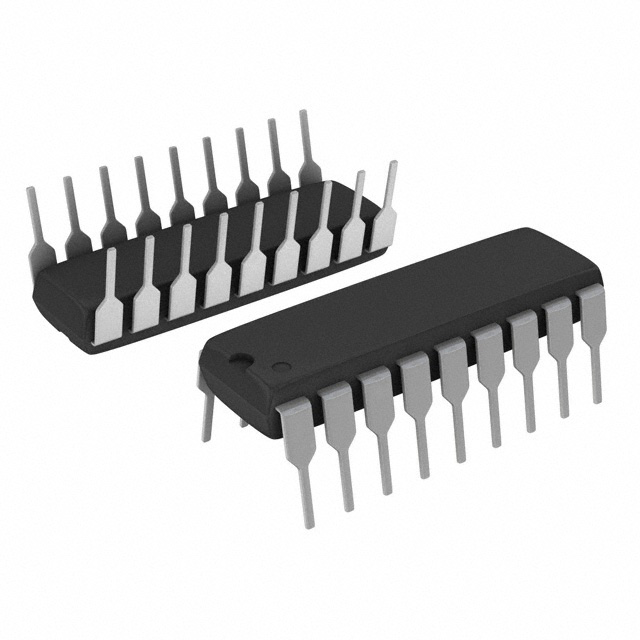

AD7224KN
IC DAC 8BIT V-OUT 18DIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD7224KN is an 8-bit, single-channel, voltage-output digital-to-analog converter. This R-2R ladder architecture device features a parallel data interface and requires an external voltage reference. The AD7224KN provides a buffered voltage output and boasts integral and differential linearity (INL/DNL) of ±1 LSB maximum. It operates within an analog supply voltage range of 11.4V to 16.5V and ±5V, with a digital supply range of 14.25V to 15.75V. The settling time is specified at 20µs. Packaged in an 18-lead DIP (0.300" wide) for through-hole mounting, this component is suitable for industrial control, instrumentation, and data acquisition applications. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-DIP (0.300"", 7.62mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 8 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 11.4V ~ 16.5V, ±5V |
| Voltage - Supply, Digital | 14.25V ~ 15.75V |
| Settling Time | 20µs |
| Supplier Device Package | 18-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
