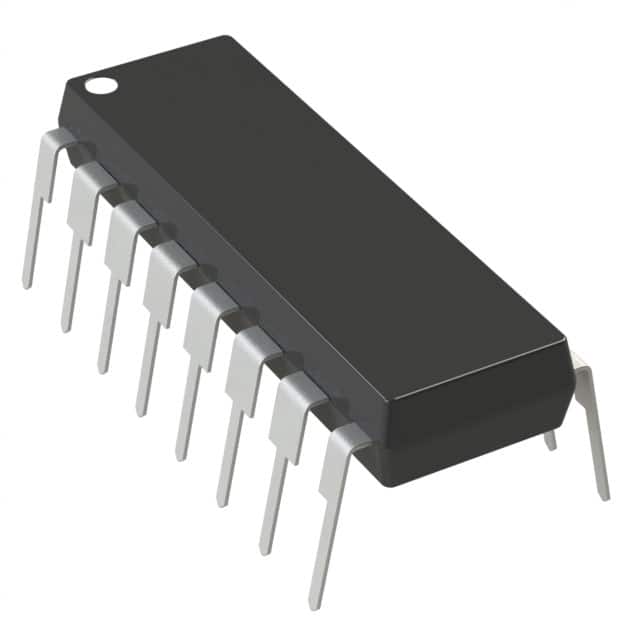

AD7111ABNZ
IC DAC 17BIT A-OUT 16DIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LOGDAC® series 17-bit, single-channel digital-to-analog converter, part number AD7111ABNZ. This R-2R architecture device features a parallel data interface and a current, unbuffered output. The AD7111ABNZ is housed in a 16-pin DIP package and operates with analog and digital supply voltages of 5V. It is suitable for applications within industrial automation, test and measurement equipment, and professional audio systems. The operating temperature range is -40°C to 85°C.
Additional Information
Series: LOGDAC®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.300"", 7.62mm) |
| Output Type | Current - Unbuffered |
| Mounting Type | Through Hole |
| Number of Bits | 17 |
| Data Interface | Parallel |
| Reference Type | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | - |
| Supplier Device Package | 16-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | - |
| Differential Output | No |
| Programmable | Not Verified |
