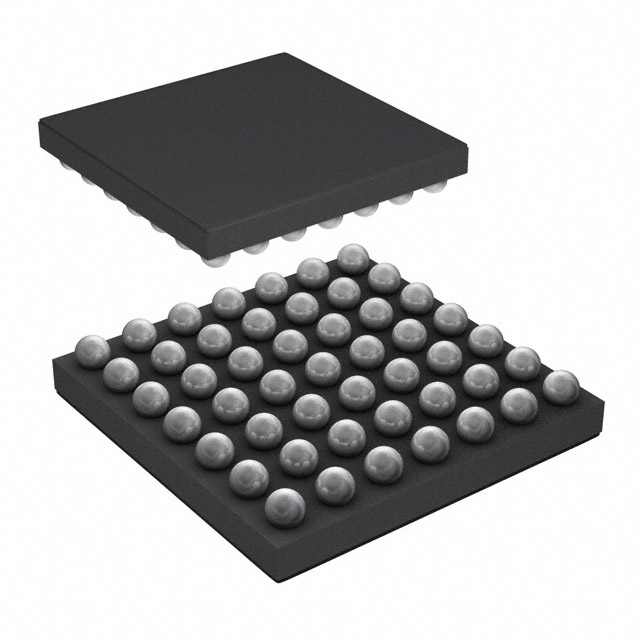

AD5770RBCBZ-RL7
IC DAC 14BIT A-OUT 49WLCSPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
14 Bit Digital to Analog Converter 6 49-WLCSP (4.04x4.04)
Additional Information
Series: AD5770RRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 49-WFBGA, WLCSP |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | Serial, SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 2.9V ~ 5.5V |
| Voltage - Supply, Digital | 2.9V ~ 5.5V |
| Settling Time | 13µs (Typ) |
| Supplier Device Package | 49-WLCSP (4.04x4.04) |
| Architecture | Current Steering |
| Number of D/A Converters | 6 |
| INL/DNL (LSB) | ±6.5 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
