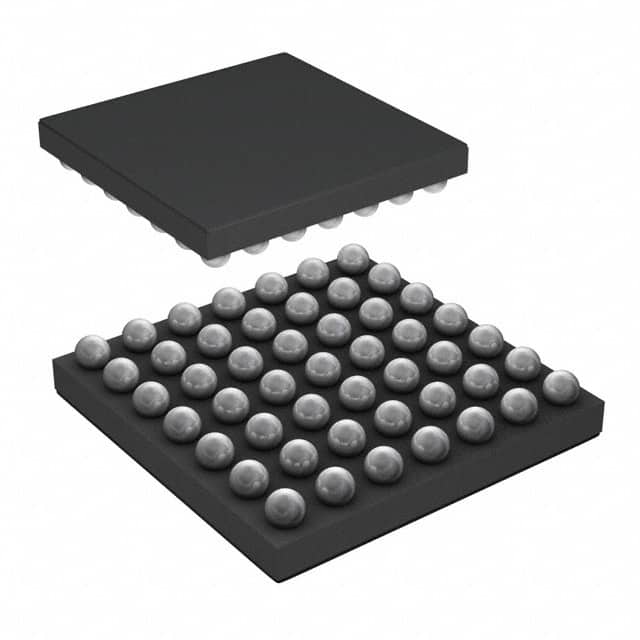

AD5766BCBZ-RL7
IC DAC 16BIT V-OUT 49WLCSPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
16 Bit Digital to Analog Converter 16 49-WLCSP (3.45x3.45)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 49-UFBGA, WLCSP |
| Output Type | Voltage - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 2.97V ~ 16V |
| Voltage - Supply, Digital | - |
| Settling Time | 12µs |
| Supplier Device Package | 49-WLCSP (3.45x3.45) |
| Architecture | String DAC |
| Number of D/A Converters | 16 |
| INL/DNL (LSB) | ±16, ±1 |
| Differential Output | No |
| Programmable | Not Verified |
