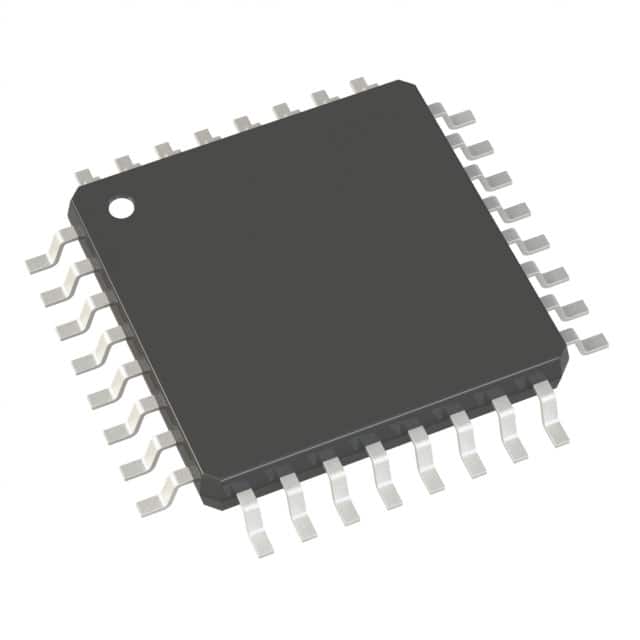

AD5764CSUZ-REEL7
IC DAC 16BIT V-OUT 32TQFPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. iCMOS® series AD5764CSUZ-REEL7 is a quad, 16-bit, voltage-output digital-to-analog converter. This component features an R-2R architecture and is housed in a 32-TQFP package with a 7x7mm footprint, supplied on a tape and reel. The AD5764CSUZ-REEL7 supports SPI and DSP serial interfaces for data input. It offers a voltage output that is buffered and requires an external reference. Key specifications include a maximum Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±1 LSB. Analog supply voltage can range from ±11.4V to ±16.5V, while digital supply is 2.7V to 5.25V. The settling time is 10µs. This device is suitable for applications in industrial automation, test and measurement, and medical instrumentation. Operating temperature range is -40°C to 85°C.
Additional Information
Series: iCMOS®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-TQFP |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Settling Time | 10µs |
| Supplier Device Package | 32-TQFP (7x7) |
| Architecture | R-2R |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
