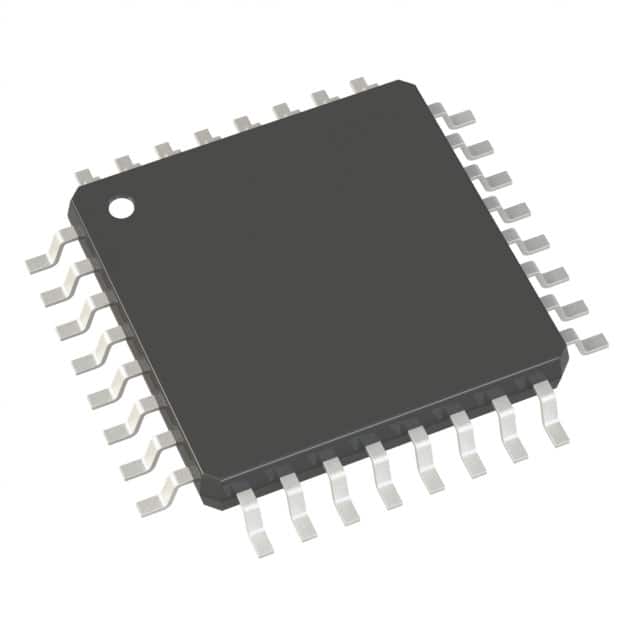

AD5764CSUZ
IC DAC 16BIT V-OUT 32TQFPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. iCMOS® AD5764CSUZ is a 16-bit, quad-channel, voltage-output digital-to-analog converter. This device features an R-2R architecture and supports both SPI and DSP data interfaces for flexible integration. The AD5764CSUZ offers excellent linearity with ±1 LSB maximum Integral Nonlinearity (INL) and Differential Nonlinearity (DNL). It provides four independent voltage outputs, externally referenced, with a buffered voltage output type. The analog supply range is ±11.4V to ±16.5V, while the digital supply ranges from 2.7V to 5.25V. Packaged in a 32-TQFP (7x7) surface-mount configuration, this component is suitable for applications in industrial automation, medical instrumentation, and test and measurement equipment, operating within a temperature range of -40°C to 85°C. The settling time for this DAC is 10µs.
Additional Information
Series: iCMOS®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-TQFP |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Settling Time | 10µs |
| Supplier Device Package | 32-TQFP (7x7) |
| Architecture | R-2R |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
