AD5760ACPZ-REEL7
IC DAC 16BIT V-OUT 24LFCSPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD5760ACPZ-REEL7 is a single-channel, 16-bit voltage-output digital-to-analog converter. This device features an R-2R architecture and supports both SPI and DSP serial data interfaces. It offers a high precision ±2 LSB maximum INL/DNL specification. The AD5760ACPZ-REEL7 operates with analog supply voltages ranging from 7.5V to 16.5V and -2.5V to 16.5V, and digital supply voltages from 2.7V to 5.5V. The unbuffered voltage output requires external reference input for precise conversion. The component is supplied in a 24-lead LFCSP-VQ (4x5) package, designed for surface mounting, and is provided on a tape and reel for automated assembly. Typical settling time for this converter is 3.5µs. This component is utilized in applications such as industrial automation, test and measurement equipment, and medical devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

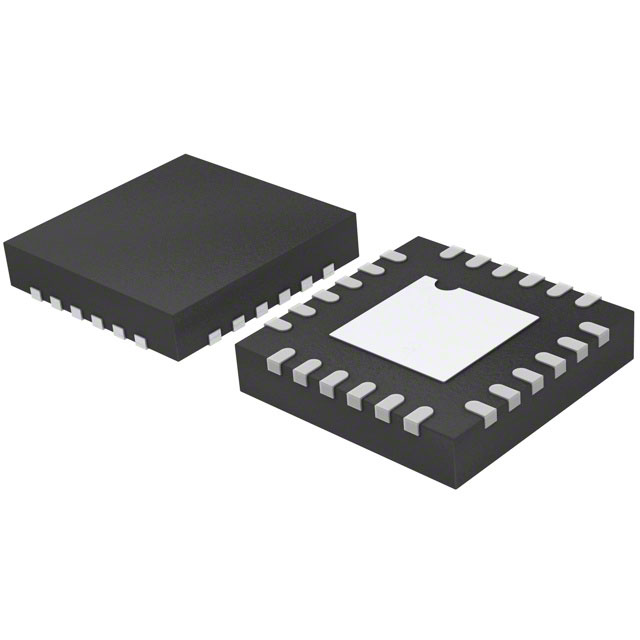

| Package / Case | 24-VFQFN Exposed Pad, CSP |
| Output Type | Voltage - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 7.5V ~ 16.5V, -2.5V ~ 16.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 3.5µs (Typ) |
| Supplier Device Package | 24-LFCSP-VQ (4x5) |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
